Automated Insulin Delivery, A Quick Overview

A quick guide to understanding the how, what and why of automated insulin delivery (AID) devices

Authors: Cowritten by ADCES staff and subject matter expert faculty with support from Insulet Corporation

January 2023


Reduce the Burden of Diabetes With AID

What is AID?

Automated Insulin Delivery (AID) systems contain 3 components: A continuous glucose monitor (CGM), an insulin pump, and an algorithm, that makes automatic adjustments to the pump’s insulin delivery in response to the CGM value and trend. These systems are frequently referred to as hybrid or advanced hybrid closed-loop insulin pumps because they are not fully automated and still require input from the user to manually deliver insulin doses when carbohydrate is consumed.7, 10

Why AID?

People with diabetes (PWD) who utilize intensive insulin therapy still struggle with elevated A1C, hypoglycemia and glucose variability, because there are countless factors that impact glucose values. AID systems are designed to help users achieve increased time in range while minimizing hypoglycemia and reducing the burden of diabetes.



  • Fewer and less severe episodes of hypoglycemia and hyperglycemia
  • Less worry by reducing the risk of hypoglycemia
  • Increased confidence due to more time in target range
  • Potential for improved A1C
  • Stable overnight glucose and increasing the potential for fasting glucose to remain within target
  • Improved sleep due to more stable glucose readings overnight
  • Reductions in diabetes distress – allowing the individual to not have to THINK about their diabetes self-management ALL the time
  • Allows for more “forgiveness” surrounding meals – if someone cannot count carbs precisely, the pump can compensate by increasing the insulin (basal and/or bolus) based on the glucose readings11
  • The ability to match basal needs more physiologically instead of presuming someone’s basal requirements are the same day after day
  • Reduces the daily tasks required to manage glucose readings


With any technology, it’s important to manage expectations and the realities of using it initially and on a continual basis to individualize and match it to the user’s needs. Here are some common considerations to discuss prior to initiating an AID system to set realistic expectations.

  • Two devices must be worn – the insulin pump and CGM
  • Insurance coverage may vary
  • There may be additional alarms/alerts
  • Basal and bolus settings must be assessed prior to initiating
  • Requires a back-up plan in the event of a pump failure
  • User must still pre-bolus for food and adjust for exercise, stress, or illness
  • Time must be allowed for the system to adjust to the user’s needs to get desired results
  • Requires user to troubleshoot when readings are unexpected or out of range
  • Requires trust by allowing the system to make the necessary adjustments without inputting fictitious information


Below is a summary of learnings and best practices related to use of AID systems and diabetes self-management activities.

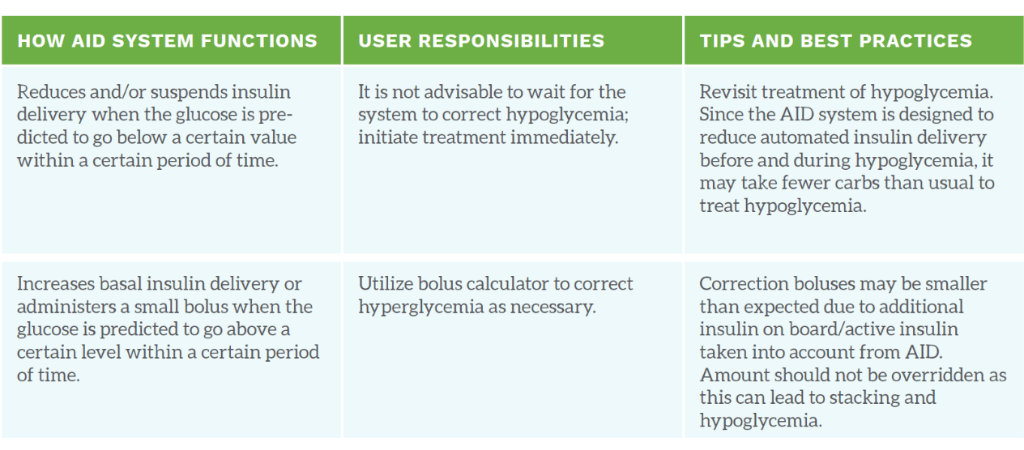

Treating Hypoglycemia and Hyperglycemia

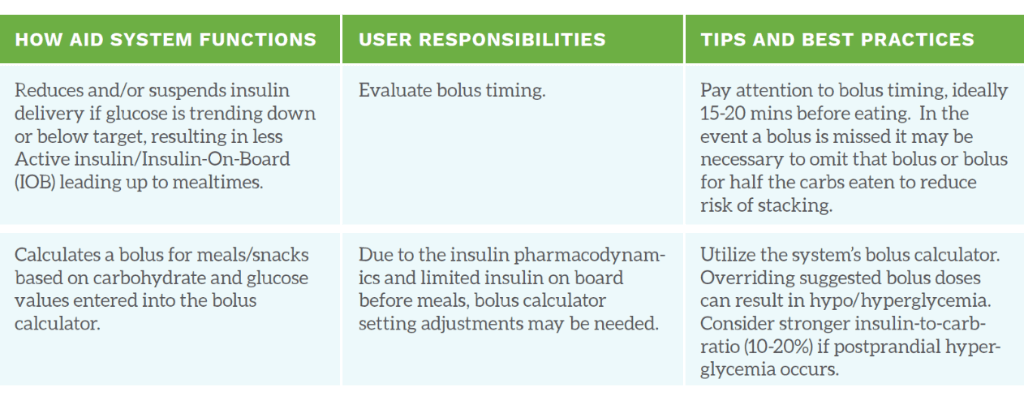

Covering Meals and Snacks

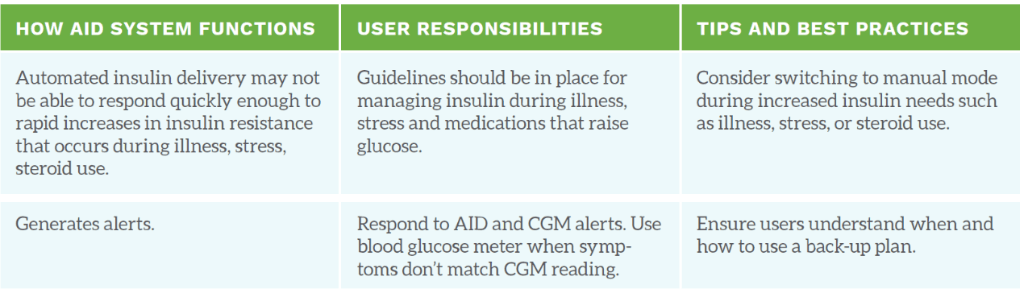

Reverting to Open Loop/Manual Mode

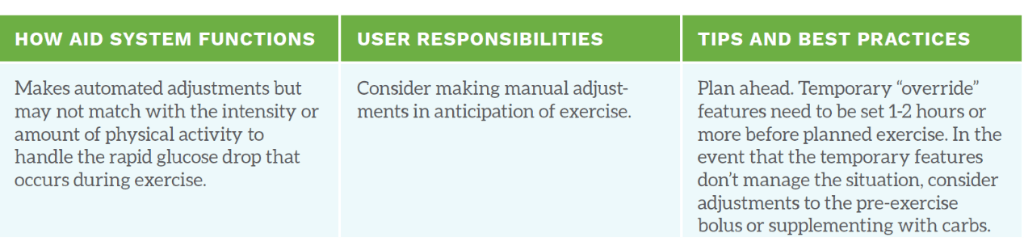

Managing Physical Activity

System Options

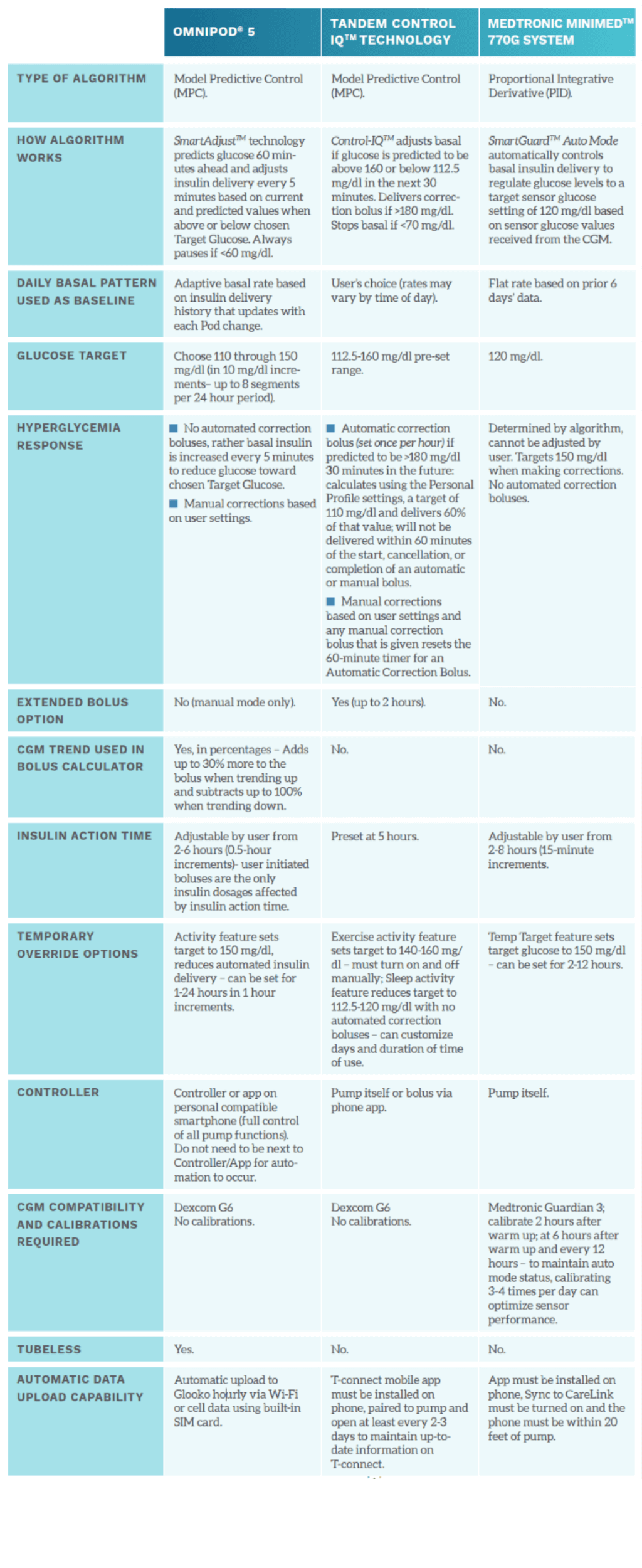

Below is a comparison of AID systems and some of their key features. For more information on all the specifications, refer to the manufacturers’ user guides.

Learn More About Automated Insulin Pumps

Find and Compare Pumps

CGM and Pump Affordability Programs

Device Training: Omnipod 5 AID System: Continued Advancement in Tubeless Insulin Delivery


1. Accessed July 1, 2022.
5. Addala, Al, et al. Cost considerations for adoption of diabetes technology are pervasive: A qualitative study of persons living with type 1 diabetes and their families. Diabetic Medicine, published online April 1, 2021.
6. Aiello, E.M., et al. Review of automated insulin delivery systems for individuals with type 1 diabetes: Tailored solutions for subpopulations. Science Direct, published online June 18, 2021.
7. Berget, Cari, et. al. Clinical Implementation of the Omipod 5 Automated Insulin Delivery System: Key Considerations for Training and Onboarding People with Diabetes. Clin Diabetes 2022; 40(2): 168-184.
8. Choi M, et al. Do-It-Yourself Open Artificial Pancreas System in Children and Adolescents with Type 1 Diabetes Mellitus: Real-World Data. Diabetes Metab J Published online Nov 23, 2021.
9. Dove K, et al. Closed-loop glucose control in young people with type 1 diabetes during and after unannounced physical activity: a randomized controlled crossover trial. Diabetologia (2017) 60:2157–2167.DOI 10.1007/s00125-017-4395-z.
10. Klonoff DC, Shang T, Zhang J. Automated Insulin Dosing Systems or Automated Insulin Delivery Systems? It is Time for Consistency. Journal of Diabetes Science and Technology. 2021;15(2):211-213.
11. Lewis, D.M., Hussain, S. Practical Guidance on Open Source and Commercial Automated Insulin Delivery Systems: A Guide for Healthcare Professionals Supporting People with Insulin-Requiring Diabetes. Diabetes Ther 13, 1683–1699 (2022). Ther (2022) 13:1683–1699
12. Paldus B, et al. A Randomized Crossover Trial Comparing Glucose Control During Moderate-Intensity, High-Intensity, and Resistance Exercise With Hybrid Closed-Loop Insulin Delivery While Profiling Potential Additional Signals in Adults With Type 1 Diabetes. Diabetes Care, published online November 17, 2021.
13. Panther Program Web Site. March 31, 2022.
14. Pinsker J, et al. Predictive Low-Glucose Suspend Necessitates Less Carbohydrate Supplementation to Rescue Hypoglycemia: Need to Revisit Current Hypoglycemia Treatment Guidelines. Diab Tech & Ther. 23:7, 2021. DOI: 10.1089/dia.2020.0619.
15. Ware, J, et al. Recent advanced in closed-loop insulin delivery. Metabolism: Clinical and Experimental, published online December 7, 2021.
