MiniMed 630G System

MiniMed™ 630G System from MiniMed

Minimed will be discontinuing the sales of the MiniMed™ 630G system.
The discontinuation dates for these products are as follows:
Last MiniMed™ 630G system sale: August 29, 2025.  End of MiniMed™ 770G insulin pump replacements: December 31, 2026

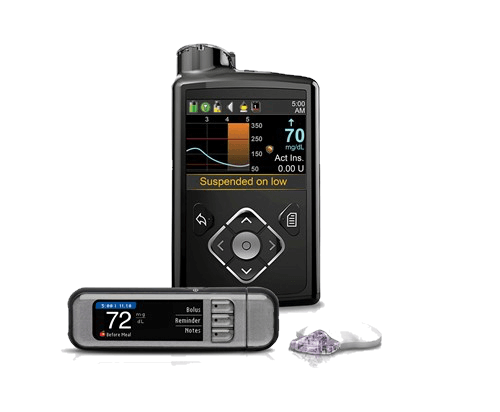

The MiniMedTM 630G Insulin Pump System features a waterproof design, built-in CGM and wireless insulin dosing. Its Enlite Sensor® sends readings to the insulin pump every 5 minutes, helping to identify trends and make adjustments.

Approved for use in people with Type 1 and Type 2 diabetes.

For complete information, visit Medtronic

  • Adolescent (13 - 20)
  • Adult (21+)
  • Durable Medical Equipment (DME)
  • Glooko
  • Guardian Sensor
  • Insulin Pumps_
  • Occlusion Detection
  • Pediatric (12 and under)
  • Product Specifications
  • Standard Insulin Pump (manual)
  • SweetSpot
  • Tidepool
  • Type 1
  • Type 2
  • Waterproof
630-g

Activity Settings:

No. Not preset but can create personal temp basal

Automatic Correction Boluses:

No

Closed Loop Functionality:

Stops insulin when sensor reaches a pre-set low

Automatic Insulin Adjustments:

Yes. For predicted low bg only

Calibration Not Required:

No. Calibration: The first calibration is due within 2 hours after connecting a new sensor. The next calibration is due within six hours after the first calibration and subsequent calibrations are due within 12 hours of the second calibration and every 12 hours thereafter.

Compatible CGM:

Guardian™ Sensor 3 and Guardian™ Link 3 Transmitter.

Waterproof:

Yes. MiniMed™ 630G insulin pump has a waterproof design at a depth of up to ~12 feet for up to 24 hours, at the time of manufacture, and when the reservoir and tubing are properly inserted.

Medicare Covered:

Yes

Remote Software Update Capability:

No

Multiple Languages:

Yes

Bolus Management Smartphone:

Yes, for fixed or manual bolus; cannot use bolus calculator, glucose reading, nor use carb input

Food Database:

Yes

Additional Features:

  • The MiniMedTM 630G system is an insulin pump that can be used with or without continuous glucose monitoring (CGM)
  • Pump Functions: Bolus Wizard calculator. Waterproof design. Color screen with auto-brightness. Built-in CGM with predictive alerts.
  • Adjustable volume for greater convenience.
  • Warm-up: Ranges from 40 minutes to 2 hours. Pump starts receiving SG values after first calibration.
  • Meter Compatibility: CONTOUR®NEXT LINK 2.4 Meter.

Size Weight:

Pump: 2.1 x 3.78 x 0.96 in., Transmitter & Sensor: 1.4 x 1.12 x 0.37 in

Approved For Ages:

Indicated for persons ages 2 and above.

Tubeless:

No

Battery:

One AA battery.

Reservoir Capacity:

Up to 300 units for use with Humalog or Novolog rapid-acting insulin

Infusion Set:

Works with Medtronic Infusion sets listed below in Industry Supporter Information section, under Product Pairing.

Basal Range:

Basal rates: 0-35 unit per hour; Basal rate increments 0.025 units per hour when less than 1.0 units per hour. Basal Profile: 8, ≤48 rate changes per day.

Bolus Range:

0.025 units – 25 units. Bolus dose increment: 0.025 units

Transmitter Range:

Up to 6 feet

  • CGM uses a special sensor to measure sugar levels just below the skin known as interstitial fluid. These sensor glucose (SG) values are different from blood glucose (BG) measurements using a BG meter. Sensor glucose values should not be used to make treatment decisions. Patients should always do a BG fingerstick before they make treatment decisions.
  • The Bolus Wizard™ calculator does not account for manual injections and could prompt you to deliver more insulin than needed. Too much insulin may cause hypoglycemia. Consult with your healthcare professional for how long you need to wait after a manual injection before you can rely on the active insulin calculation of your Bolus Wizard™ calculator.
  • At the time of manufacture and when the reservoir and tubing are properly inserted, your pump is waterproof. It is protected against the effects of being underwater to a depth of up to 12 feet (3.6 meters) for up to 24 hours. © 2019 Medtronic. All rights reserved. Medtronic, Medtronic logo, and Further, Together are trademarks of Medtronic. Third party brands are trademarks of their respective owners. All other brands are trademarks of a Medtronic company.
